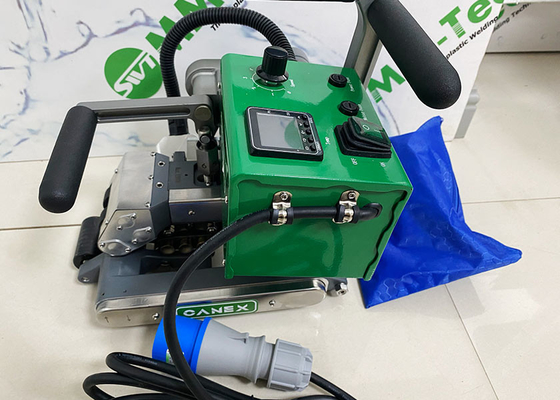

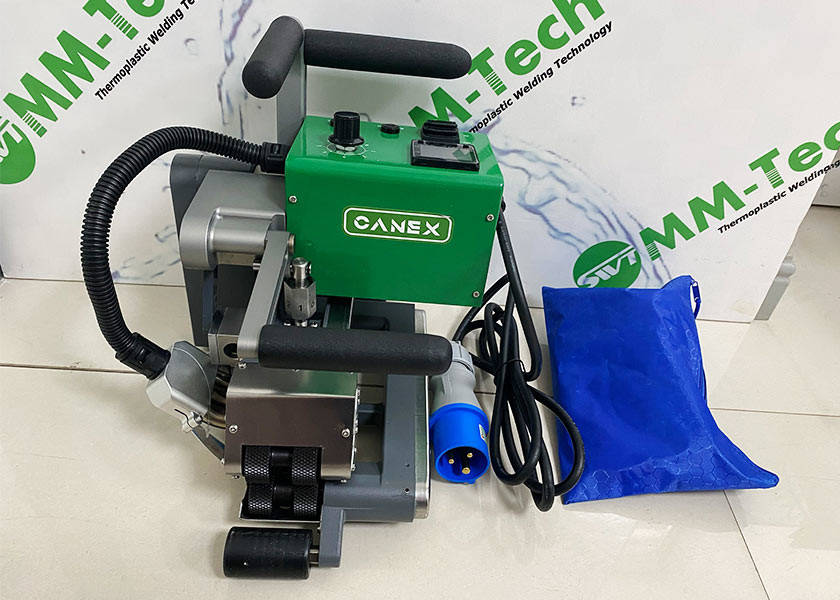

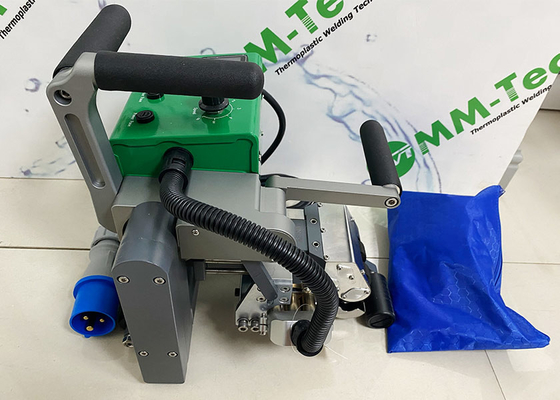

0.8-3mm CX500L Geomembrane Welding Machine For Landfill

0.8-3mm CX500L Geomembrane Welding Machine For Landfill

0.8-3mm CX500L Geomembrane Welding Machine For Landfill
0.8-3mm CX500L Geomembrane Welding Machine For Landfill 0.8-3mm CX500L Geomembrane Welding Machine For Landfill 0.8-3mm CX500L Geomembrane Welding Machine For Landfill

Grande immagine :  0.8-3mm CX500L Geomembrane Welding Machine For Landfill

Dettagli:
Luogo di origine: Cina
Marca: MM-Tech
Certificazione: CE
Numero di modello: CX500
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 set
Prezzo: US$1500-US$1600/set
Imballaggi particolari: Scatola di alluminio
Tempi di consegna: 5-8 Giornata lavorativa
Termini di pagamento: T/T, Western Union
Capacità di alimentazione: 1000 set a settimana
Descrizione di prodotto dettagliata
Voltaggio: 220 V Frequenza: 50 Hz
Potenza: 1400 W velocità di saldatura: 0-8m/min
Spessore del materiale di saldatura: 0.8 mm-3 mm Temperatura di riscaldamento: 0-450℃
Peso netto: 9.5 kg
Evidenziare:

0.8mm Geomembrane Welding Machine

,

3mm Geomembrane Welding Machine

,

3mm Landfill Geomembrane Welding Machine

                  0.8mm-3mm CX500L Geomembrane Welding Machine For Landfill

0.8-3mm CX500L Geomembrane Welding Machine For Landfill 0

CX series geomembrane welding machines are equipped with copper or brass hot wedges to ensure efficient and accurate welding process and meet the welding requirements of membranes of different materials.The bearings of the whole machine are imported from Germany, with excellent stability and durability, which effectively extends the service life of the equipment and ensures long-term stable operation.The welding machines are suitable for welding geomembranes with a thickness of 0.3-4.Omm. They are easy to operate and have excellent performance. They are ideal choices for geomembrane welding projects.The hot air guns are equipped with replaceable different welding nozzles to adapt to different welding needs.It adopts imported heating elements to ensure long-term stable work at high temperature.



Product Description:



The Cx5ooL is a dual purpose welding machine, allowing for single sided welding by feeding the geomembrane from the
same side, typically used for capping biogas tanks and landfills. Additionally, it supports overlap welding, where the
geomembrane can be fed from both sides (left and right).This versatile machine boasts a power output of 18oow and
weighs just 9.5 kg.



Voltage  220V
Frequency 50HZ
Power 1400W
Welding speed 0-6m/min
Heating temperature 0-450℃
Welding material thickness 0.8mm-3mm
Welding seam strenght ≥85%original material
Overlap width 100mm
Net weight  9.5kg
Welding seam width 15mm*2,interior Cavity material



1. The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
2. Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.
3. The wading depth of the machine is 50mm (water less than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.
4. The entire bearing of the machine is imported from Germany.
5. The gearbox transmission adopts the most advanced helical gear transmission technology.
6. The temperature sensor adopts a stainless steel armor shell, which is not afraid of acid and alkali corrosion.



Products Advantage:



1. Main Frame Design:

The main frame is made of aviation aluminum,die-cast, and painted on the surface, which is light and strong.



2. Precision Bearings:

The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.



3. Digital Display Screen:

The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.



4. Pressure Adjustment:

The double handle design is ergonomic and the pressure nut is equipped with a high-strength spring for easy adjustment.



5. Hot Wedge

Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to lose.



6. Heating Cartridge

The wading depth of the machine is 50mm (water less than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.



Application:



1. Mining:

Mime wastewater, waste residue treatemnt, Tailings Leakage Prevention



2. Environmental Engineering:

Landill, Sewage treatment plant



3. Aquaculture:

Aquaculture ponds, fish ponds, shrimp ponds, etc,.

0.8-3mm CX500L Geomembrane Welding Machine For Landfill 1



0.8-3mm CX500L Geomembrane Welding Machine For Landfill 2

0.8-3mm CX500L Geomembrane Welding Machine For Landfill 3

0.8-3mm CX500L Geomembrane Welding Machine For Landfill 4
