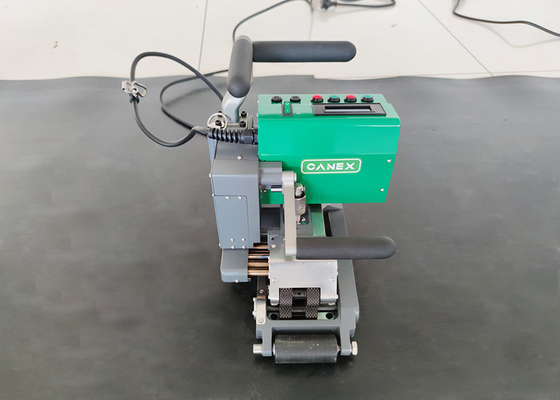

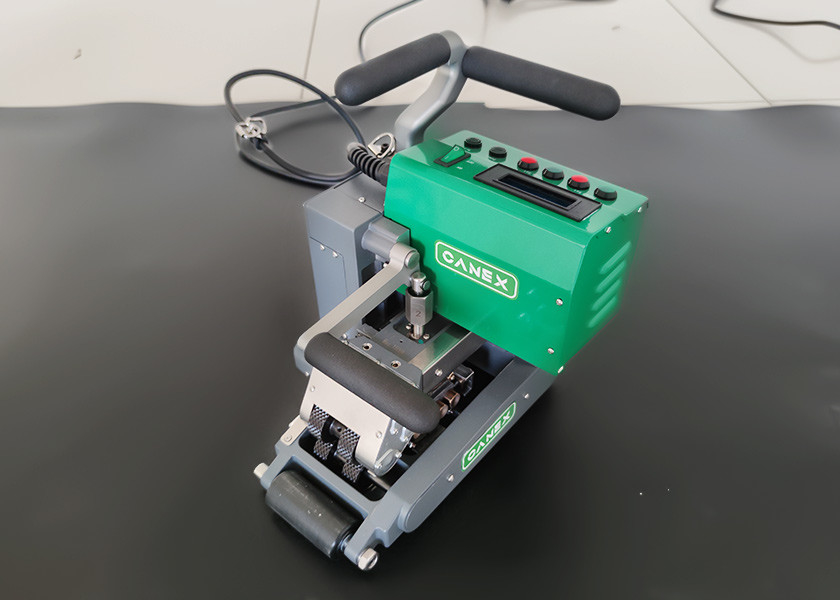

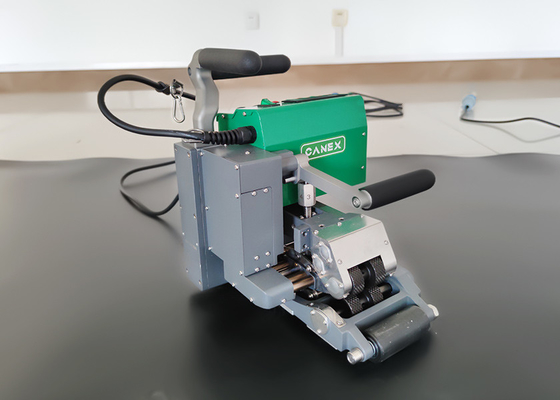

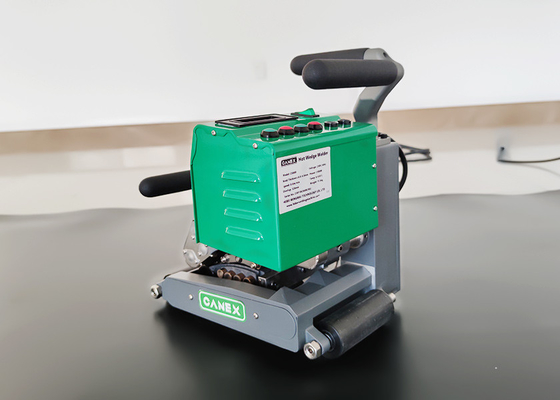

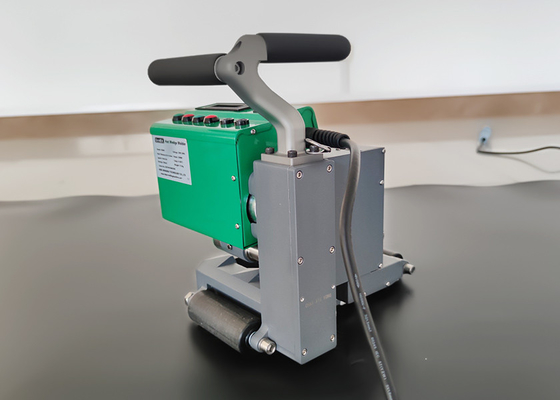

Full Power Geomembrane Welding Machine CX600 Overlap Welder

Hot Wedge Machine CX600

     The CX600 has a power of 2100W and a weight of 11.5kg. The main frame of this machine, the material used is aviation aluminum, the characteristics of this material, light weight, high strength, no deformation, and we use the die casting process, (not foundry die casting), is open steel mold, the use of 1500 tons of die casting machine die casting molding, after forming, the surface is painted treatment, spray paint after processing.

Parameter Specification

Application

    The Hot Wedge Machine CX600 is commonly used in multiple fields. In civil engineering, it is essential for constructing roads, railways, airports, etc., providing reliable welding to ensure the stability and waterproofing of pond liner.


    For water conservancy projects, it helps in building canals, reservoirs and other hydraulic structures, preventing water leakage. In the environmental protection field, it is widely used in landfill sites to prevent pollutants from seeping into the soil and groundwater.


    In mining, it offers an effective solution for welding geomembrane in mines and tailings ponds, ensuring safety.


    Additionally, it serves well in agriculture for constructing irrigation systems and ponds. Its efficient and high - quality welding plays a significant role in the success of various projects.

Product Feature

1. Main Frame Design
   The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.


2. Precision Bearings

   The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.


3. Liquid Crystal Display Screen

   The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.


4. Pressure Adjustment

   The double handle design is ergonomic, and the pressure nut is equipped with a high-strength spring for easy adjustment.


5. Hot Wedge

   The hot wedge cutter is available in copper and brass. The curved pipe design is waterproof, and the fixing screws are filled with silicone shields.

​

FAQ

1. How About The Delivery Time?

   Approximately within 10-14 days after received your payment.


2. Can I Get A Sample From Your Company? Should I Pay For The Express Fee?

   We can offer free sample to you.After confirming your order, the sample's freight cost wil be deducted from your order's total cost.


3. What Are The Use Scenarios Of Geomembrane?

   Water conservation engineering, municipal engineering, mining, fishery, agriculture, environmental protection,etc.


4. How Can I Pay?

   You can pay by credit card, wire transfer, western union, and paypal, etc.


5. How To Ship The Machines?

   Normally we ship the goods through express such as DHL, FEDEX, UPS.


6. Do You Test All Items Before Shipping?

   Yes, we have passed 100% testing before delivery.


7. How To Guarantee The Quality?

   Warranty is 5 years, if there are any quality problems, we accept return or give spare parts for free.
